Quenching, Aging And Heat Treatment Of Aluminum Alloy Parts Quenching Furnace Feature
The furnace cover lifting mechanism is composed of furnace cover, supporting shaft, large shaft support, lifting arm, hydraulic power and so on. The structure is simple, the lifting speed is fast, and the performance is reliable, so the cavitation rate is extremely low;
Good chemical stability. It is not attacked by general acid and alkali in heat treatment equipment.
Because the fiber absorbs less heat and the furnace body cools quickly, the workpiece after solution treatment can enter the aging process without waiting too long.
1. Quenching, Aging And Heat Treatment Of Aluminum Alloy Parts Quenching Furnace Structure
The complete set of equipment consists of furnace body, hot air circulation system, furnace cover lifting mechanism, control cabinet and other systems.
2.Quenching, Aging And Heat Treatment Of Aluminum Alloy Parts Quenching Furnace Advantage
(1) It has excellent high temperature resistance and can withstand temperature up to 1250℃.
(2) The thermal conductivity is low and the heat transfer speed is slow, which greatly reduces the heat loss of the furnace.
(3) The density is small, the density of refractory fibers is small, the weight is light, and the bulk density is only 1/6 of the bulk density of light bricks, which greatly reduces the load of the steel structure.
(4), less heat storage. The furnace wall is made of refractory fiber, and its heat storage is only about 1/4 of the brick structure furnace, so the heating time of the furnace body is short.
(5), good thermal shock resistance. Because the refractory fiber is soft and elastic, it has excellent resistance to rapid cooling and rapid heating, and has strong thermal shock resistance.
(6) The insulation performance is good, and the insulation performance at high temperature is 3 times that of refractory bricks.
3. Quenching, Aging And Heat Treatment Of Aluminum Alloy Parts Quenching Furnace Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
| Heating time | less than 1.2 hours |
Product Tags:
|
|

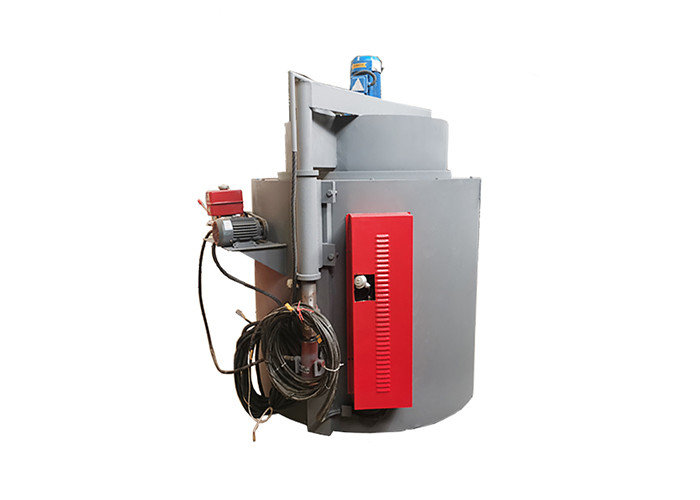

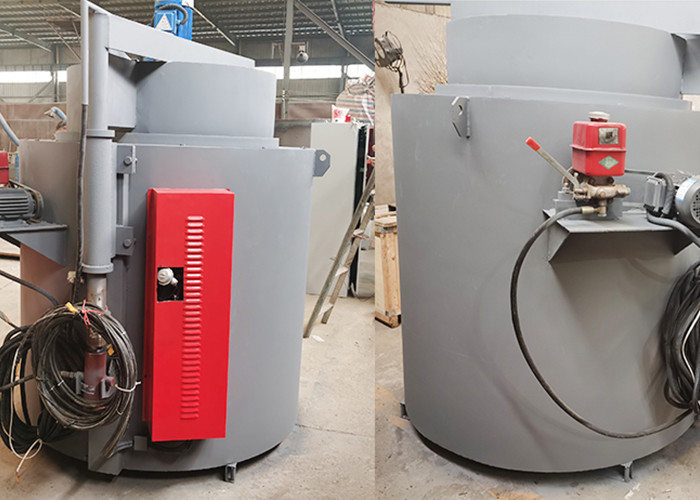

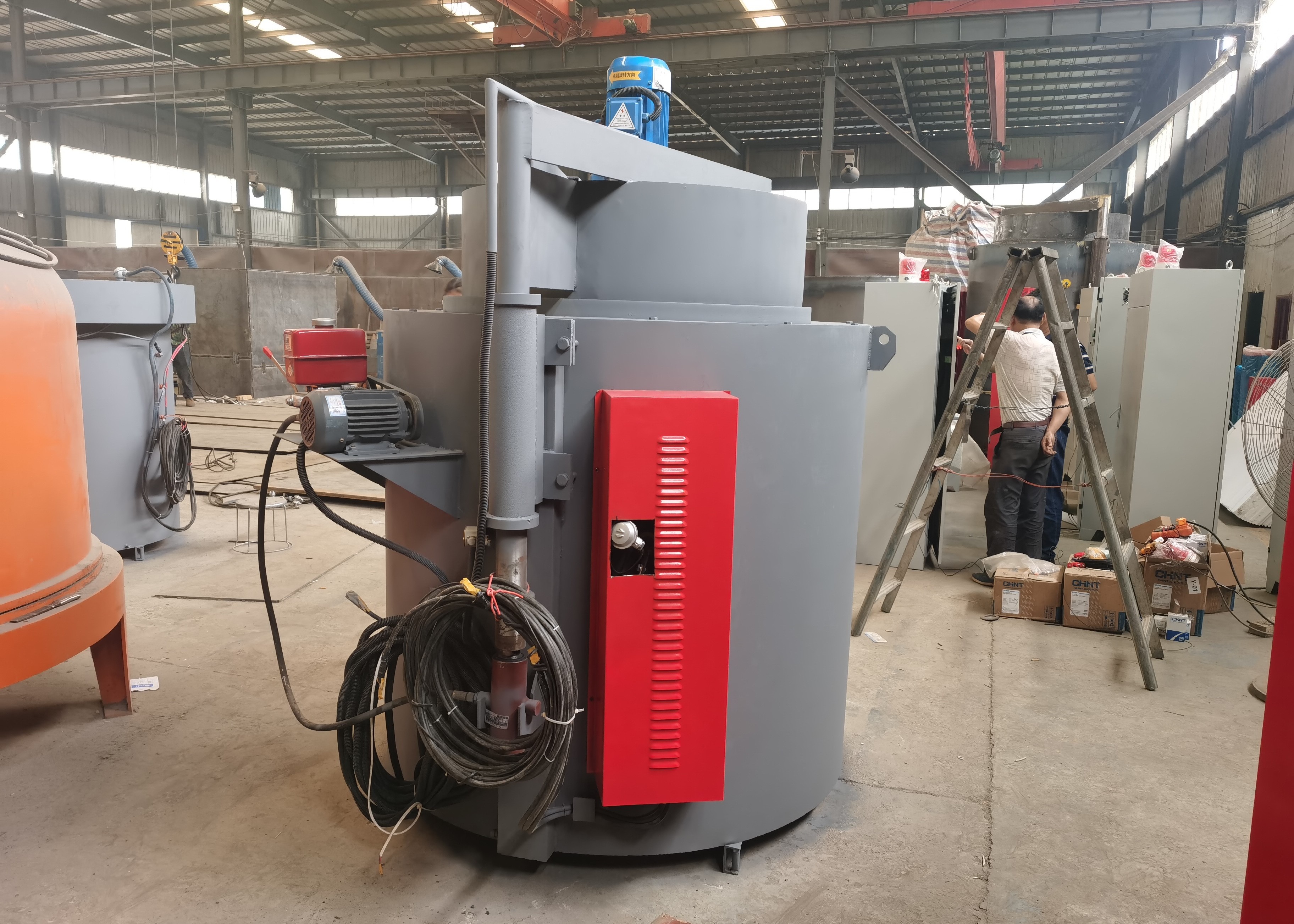

750C Quenching Aging Heat Treatment Furnace For Aluminum Alloy Parts Images
|
