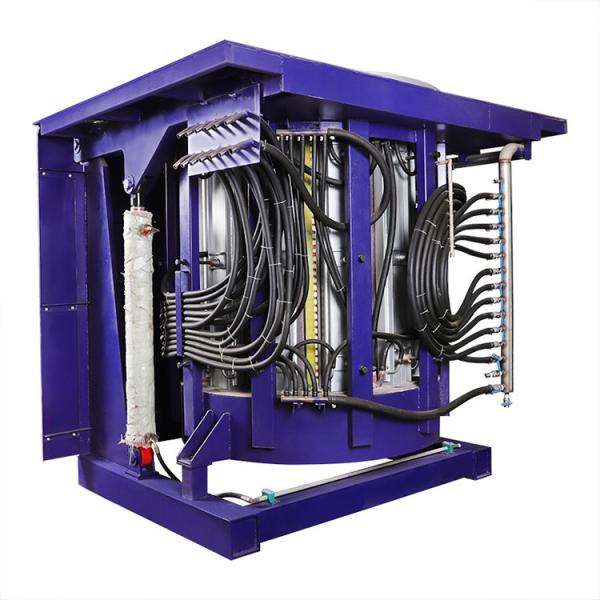

100HZ to 400HZ Tilting Industrial Melting Furnace For Copper Melting

Brand Name : IRIS

Model Number : IRIS-2T

Certification : ISO9000

Place of Origin : China

MOQ : 1set

Price : USD2999-USD41200/Sset

Payment Terms : T/T

Supply Ability : 5 Set/month

Delivery Time : 20 Wokring days

Packaging Details : Standard export wooden box packaging

Product name : Tilting Induction Recycled Aluminum Can Copper Ingot Melting Furnace Electric Induction Scrap Aluminum Smelting Furnac

Capacity : 2500kg

Power : 1500kw

Input Voltage : 575V

Input current : 790A

DC voltage : 775V

DC current : 1935A

MF voltage : 2800V

MF frequency : 100-400HZ

Type : Industrial Metal Melting Furnace

Contact Now

Tilting Induction Recycled Aluminum Can Copper Ingot Melting Furnace Electric Induction Scrap Aluminum Smelting Furnac​e



100HZ to 400HZ Tilting Industrial Melting Furnace For Copper Melting

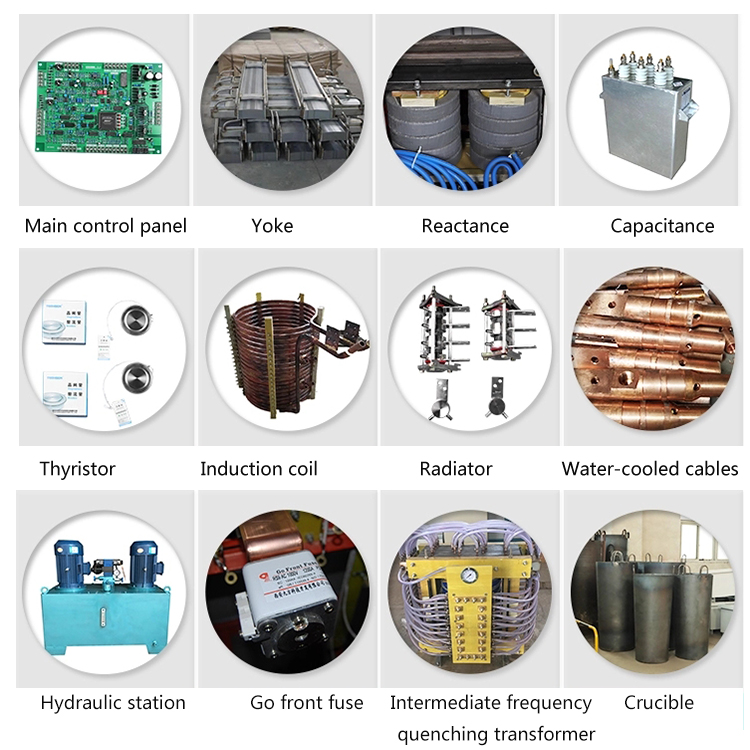

Rotary Zero-gap technology :

The furnace body rotates without gaps during the tilting process, which can effectively prevent molten iron liquid enters the furnace body ,and protect the equipment ruuning safely





Side plate structure of furnace body :

The side plate structureof the furnace body adopts the one-piece forming process of the integral steel plate, which is sturdy and durable.



High quality yoke :

Magnetic yoke is using silicon steel sheet with 0.27 thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited,which effectively prevents expansion due to heat of the stainless steel.



Material of induction coil :

Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.

Wall thickness of induction coil : 5mm-8mm

3-layer insulation treatment





Stainless steel water separator :

304 stainless steel shunt



Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace



Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

 300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

 350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

 315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

 380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

 1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

 750V 750V 1400V 1480V 1460V 4800V

DC voltage

 500V 500V 990V 990V 990V 1350V

DC current

 600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

 1800℃



100HZ to 400HZ Tilting Industrial Melting Furnace For Copper Melting

100HZ to 400HZ Tilting Industrial Melting Furnace For Copper Melting

100HZ to 400HZ Tilting Industrial Melting Furnace For Copper Melting

100HZ to 400HZ Tilting Industrial Melting Furnace For Copper Melting
